SERIAL & PARALLEL DATA CONNECTOR PIN-OUTS
By: Don McClatchie
Serial and Parallel data communication has been with us since the dawn of computers and connecting other devices to those computers have always required various types of hardware and wiring. This article gives examples of the most common connection methods old and new, and the wiring scheme for the connection. This list shows the type of connector and the pin wiring for that connector. The IEEE-488 GPIB I/O interface is also listed for those people interested in remote control of instrumentation and testing equipment.
USB UNIVERSAL SERIAL BUSS | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | RED WIRE | + 5 Volt (VSS) | None | ||
2 | WHITE | DATA – | In/Out | ||
3 | GREEN | DATA + | In/Out | ||
4 | BLACK | Ground | None |
PS2 Keyboard 5 Pin DIN SERIAL BUSS | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | CLOCK | Clock Data In and Out | Output | ||
2 | DATA | Data Line | In/Out | ||
3 | NONE | Not Connected | None | ||
4 | GROUND | Ground for +5, Data & Clock | None | ||
5 | +5 VOLTS (vcc) | Power Supply VCC | None |

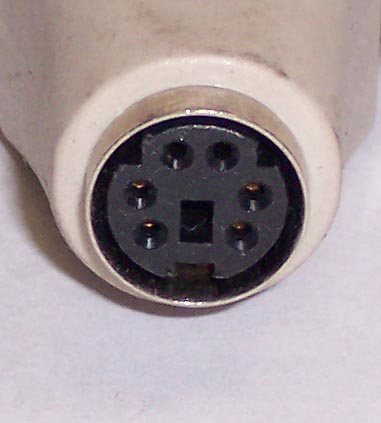

PS2 Keyboard 6 Pin Mini DIN | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | DATA | Data Line | In/Out | ||
2 | NONE | Not Connected | None | ||
3 | GND | Ground for +5, Data & Clock | None | ||
4 | +5 VOLTS (vcc) | Power Supply VCC | None | ||
5 | CLOCK | CLOCK | Output | ||
6 | NONE | Not Connected | None |

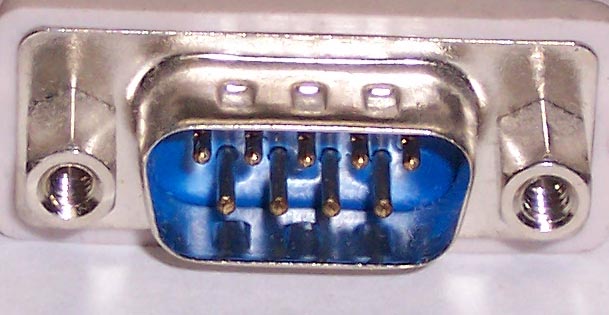

RS232C Serial Interfaces I/O Standard DB9 Pin Connector (IBM) | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | DCD | Data Carrier Detect | Input | ||
2 | RD | Receive Data | Input | ||
3 | SD | Transmit Data | Output | ||
4 | DTR | Data Terminal Ready | Output | ||
5 | SG | Signal Ground | None | ||
6 | DSR | Data Set Ready | Input | ||
7 | RTS | Request to Send | Output | ||
8 | CTS | Clear to Send | Input | ||
9 | RI | Ring Indicator | Input |
RS232C Serial Interfaces I/O Standard DB9 Pin Connector (Macintosh) | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | GND | Ground | None | ||
2 | No Connection | None | |||
3 | SG | Signal Ground | None | ||
4 | No Connection | None | |||
5 | TD | Transmit Data | Output | ||
6 | DTR | Data Terminal Ready | Output | ||
7 | DSR | Data Set Ready | Input | ||
8 | No Connection | None | |||
9 | RD | Receive Data | Input |
RS232C Serial Interfaces I/O (Apple IIc) Round Pin Connector | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | DTR | Data Terminal Ready | Output | ||
2 | TD | Transmit Data | Output | ||
3 | GND | Ground | None | ||
4 | RD | Receive Data | Input | ||
5 | DSR | Data Set Ready | Input |
RS232C Serial Interfaces I/O (Commodore 64) Round Pin Connector | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | SRQIN | Serial SRQIN | Input | ||
2 | GND | Signal Ground | None | ||
3 | SA | Serial Attn I/O | In/Out | ||
4 | SC | Serial Clock I/O | In/Out | ||
5 | SD | Serial Data I/O | In/Out | ||
6 | RS | Reset | Input |

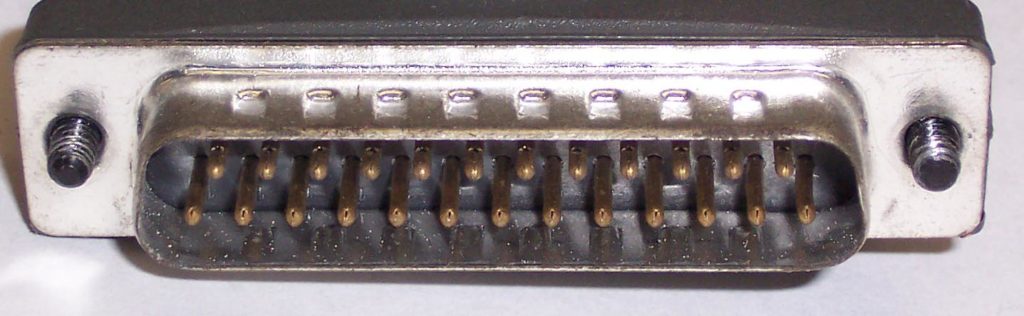

IBM / MSDOS DB25 Parallel Connector Computer Side | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | STROBE | Clocks In Data | Output | ||
2 | DATA BIT 0 | Data Line | Output | ||
3 | DATA BIT 1 | Data Line | Output | ||
4 | DATA BIT 2 | Data Line | Output | ||
5 | DATA BIT 3 | Data Line | Output | ||
6 | DATA BIT 4 | Data Line | Output | ||
7 | DATA BIT 5 | Data Line | Output | ||
8 | DATA BIT 6 | Data Line | Output | ||
9 | DATA BIT 7 | Data Line | Output | ||
10 | ACKNLG | Acknowledge Receipt | Input | ||
11 | BUSY | Printer is Busy | Input | ||
12 | PAPER EMPTY | Printer Out of Paper | Input | ||
13 | SLCT | Online Mode Indicator | Input | ||
14 | AUTO FEED XT | Output | |||
15 | FAULT ERROR | Indicates Offline Mode | Input | ||
16 | INIT | Resets Printer Clears Buffer | Output | ||
17 | SLCT IN | TTL High Level | Output | ||
18 | GROUND | Ground Return for Pin 1-12 | Output | ||
19 | GROUND | Ground Return for Pin 1-12 | Output | ||
20 | GROUND | Ground Return for Pin 1-12 | Output | ||
21 | GROUND | Ground Return for Pin 1-12 | Output | ||
22 | GROUND | Ground Return for Pin 1-12 | Output | ||
23 | GROUND | Ground Return for Pin 1-12 | Output | ||
24 | GROUND | Ground Return for Pin 1-12 | Output | ||
25 | GROUND | Ground Return for Pin 1-12 | Output |
IEEE-488 GPIB I/O Interface 24 Line Parallel Buss Connector | |||||
Pin # | Signal | Function | Signal | ||
Description | Direction | ||||
On Device | |||||
1 | DATA I/O 1 | Data Line I/O Buss | In/Out | ||
2 | DATA I/O 2 | Data Line I/O Buss | In/Out | ||
3 | DATA I/O 3 | Data Line I/O Buss | In/Out | ||
4 | DATA I/O 4 | Data Line I/O Buss | In/Out | ||
5 | EIO | End or Identify | In/Out | ||
6 | DAV | Data Valid | Output | ||
7 | NRFD | Not Ready for Data | Output | ||
8 | NDAC | Data Not Accepted | Output | ||
9 | SRQ | Service Request | Output | ||
10 | IFC | Interface Clear | Output | ||
11 | ATN | Attention | Output | ||
12 | Shield GND | Wire Ground | None | ||
13 | DATA I/O 5 | Data Line I/O Buss | In/Out | ||
14 | DATA I/O 6 | Data Line I/O Buss | In/Out | ||
15 | DATA I/O 7 | Data Line I/O Buss | In/Out | ||
16 | DATA I/O 8 | Data Line I/O Buss | In/Out | ||
17 | REN | Remote Enable | Output | ||
18 | GND | Ground | None | ||
19 | GND | Ground | None | ||
20 | GND | Ground | None | ||
21 | GND | Ground | None | ||
22 | GND | Ground | None | ||
23 | GND | Ground | None | ||
24 | LOGIC GND | Logic Ground | None |
